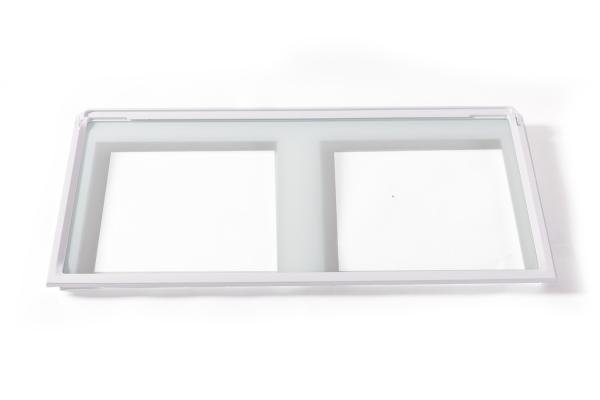

Household Appliance Parts Crisper Drawer Cover With White Frame Printed
Description of crisper drawer cover:
Crisper drawer cover is encapsulated with printed glass, the plastic slider on both sides is used to assembly the drawer, and to assembly the adjustment part and light-transmitting parts
Crisper drawer cover is made of tempered glass and size also could be made as per your design. The custom cut to size crisper drawer cover could be compatible with mini refrigerator, side by side refrigerator, French door refrigerator, three door refrigerator, four door refrigerator, T door refrigerator.
| HS Code | 70071900 | Printing | Silk screen printing |
| Certificate: | CCC | Fragment state | More than 40pcs |
| MOQ | 1000pcs | Glass Type | Float Glass |
| Other Name: | Fridge Glass shelf | Place of Origin: | Henan, China |

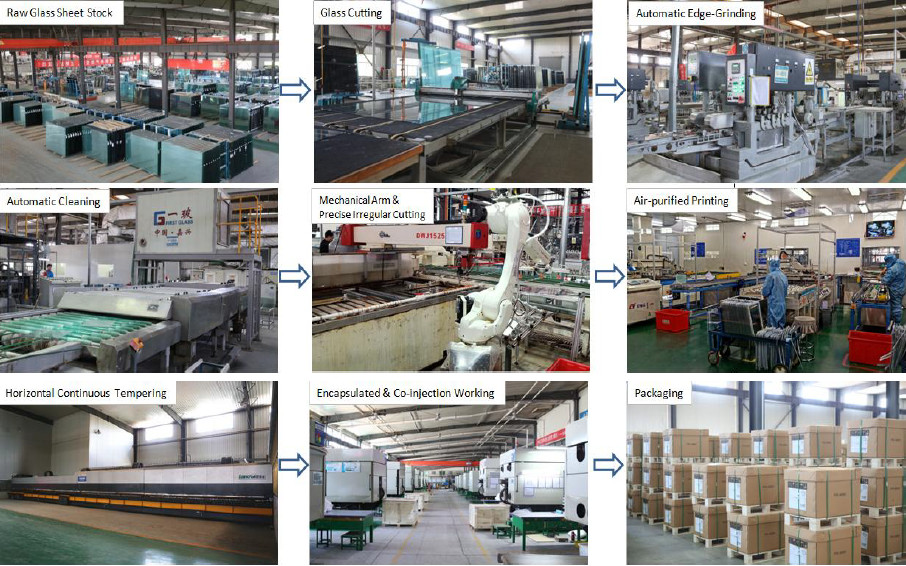

Tempered glass manufacturing for crisper drawer cover:
Step 1 Float glass is cut to the desired size.
Step 2 Prior to the tempering process, the cut glass is checked for flaws such as cracks, bubbles, and inclusions. The presence of these imperfections can cause breakage during the tempering process.
Step 3 The glass is washed to remove dust, dirt, and debris that could interfere with the thermal tempering process.
Step 4 After it has been cut, checked for flaws, and washed, the glass travels either in batches or in a continuous feed through a furnace, where it is heated at temperatures over 600 degrees Celsius.
Step 5 After the heating process, the scorching piece of glass undergoes a cooling process. During this process, the glass receives high-pressure blasts of cold air from varying angles for about three to 10 seconds. The process, called “quenching,” cools down the surface of the glass much faster than it does the center. Because of this, the interior zone of the glass stays in tension while the surface goes into compression. This combination of competitive stresses is what makes tempered glass so strong.
Advantages of crisper drawer cover:
1. Security: When the glass is external damage, Debris will become very small obtuse angle grains and difficult to cause harm to humans.
2. High strength: the impact strength tempered glass of the same thickness of ordinary glass 3 to 5 times more than the ordinary glass ,bending strength 3-5 times.
3. Thermal stability: Tempered glass has good thermal stability, can withstand the temperature is more than 3 times that of ordinary glass, can withstand 200 °C temperature changes.
Supply Ability for crisper drawer cover:
Supply Ability: 1,250,000 Square Meters per Month
| Quantity(Square Meters) | 1 - 100 | 101 - 1000 | 1001 - 10000 | >10000 |
| Est. Time(days) | 7 | 15 | 20 | Negotiable |
Main equipment to produce crisper drawer cover:
10,000 square meters dust free printing workshop.
Silk Screen Printing Machine: 25 lines
Automatic Tempering Furnaces:3 lines
Co-injection machine: 16 lines
Hot stamping machine for decorative glass: 5 lines
CNC Processing Centers (cutting , notching , drilling , processing for shaped glass , etc.) 4 lines
Application of crisper drawer cover:
Widely used as household appliance parts/ appliance accessory for refrigerators, freezers. Tempered glass we made is for oven door, oven control panel, microwave oven door glass, refrigerator glass door, fridge shelf, air conditioner, dish-washing machine panel, washing machine lid, dishwasher door, stove panel, switch panel glass, electronic products panel, kitchen electronic scale, electronic weighing scale, switch panel, etc.
Our advantage of crisper drawer cover:
1. Over 17 years experience in glass processing.
2. Well-found glass processing facilities and advanced technology .
3. Over 7 times of inspection during and after production.
Product Tags:
|
|
3.2mm White Frame Refrigerator Crisper Drawer Glass Cover Images
|
